BATTENS T8 LED Tube Weatherproof Emergency Batten

bwpe
SKU:
B210WPE / B218WPE
View Stockists

BATTEN

T8 LED Tube Weatherproof Emergency Batten

Features

  • Fitted with large terminal block allowing for fast installation and maintenance.
  • Wide body to cover junction boxes and provides ample space for heat generating components.
  • Constant current driver
  • 3 hour discharge
  • Polycarbonate base and tamper proof stainless steel clips
  • 2 x 10w / 2 x 18w
  • LED, 30,000hr life
  • 1800mAh lithium battery technology
  • Designed and manufactured to AS/NZS2293.3

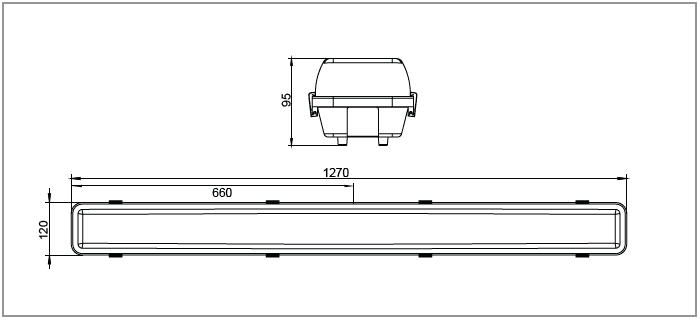

Dimensions

t8 weatherproof emergency

Specifications

  2ft 4ft
Order Code B210WPE B218WPE
Model No LWWB210E LWWB218E
Input Voltage 240v 240v
Wattage

2 x 10w
6w (Emergency)

2 x 18w
6w (Emergency)

Lumen Output 2000lm 3600ml
Operation Mode Sustained Sustained
Beam Angle 100˚ 100˚
Classification C0=D63 C90=D20 C0=D63 C90=D20

Applicable

Standard

AS/NZS2293.3 AS/NZS2293.3
Construction Polycarbonate body and diffuser.
Stainless Steel clips and screws.
Polycarbonate body and diffuser.
Stainless Steel clips and screws.
Lamps 2 x T8 LED
tubes 6000k
10w
2 x T8 LED
tubes 6000k
18w
Terminal Block 12mm 12mm
Dimming Options No No
Dimensions (mm) 660x120x95 1270x120x65
Weight 2.5kg 5kg
Downloads

Datasheet

IES File - 2ft
