BATTENS T8 LED Tube Prismatic Emergency Batten

widebody battens
SKU:
B210PE / B218PE
Carton Quantity:
10
View Stockists

BATTEN

T8 LED Tube Prismatic Emergency Batten

Features

  • Battens feature quality components and superior finish to provide both good looks and reliability
  • Developed for applications such as basement car parks, warehouses, fire stairs, commercial public spaces and industrial sites
  • Low power consumption
  • Wall & ceiling mount
  • Easy testing and maintenance
  • Sustained
  • 1800mAh lithium battery technology
  • Designed and manufactured to AS/NZS2293.3

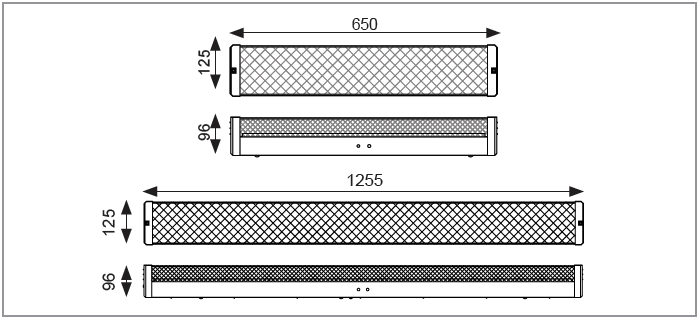

Dimensions

t8 emergency emergency batten

Specifications

  2ft 4ft
Order Code B210PE B218PE
Model No LWB210PE LWB218PE
Input Voltage 240v 240v
Wattage

2 x 10w
2 x 3w
(Emergency)

2 x 18w
2 x 3w
(Emergency)

Lumen Output 2000lm 4000ml
Operation Mode Sustained Sustained
Beam Angle 100˚ 100˚
Classification C0=D50 C90=D20 C0=D50 C90=D20

Applicable

Standard

AS/NZS2293.3 AS/NZS2293.3
Construction Powder coated steel body with
polycarbonate lamp holders
Powder coated steel body with
polycarbonate lamp holders
Lamps 2 x T8 LED
tubes 6000k
10w
2 x T8 LED
tubes 6000k
18w
Terminal Block 12mm 12mm
Dimming Options No No
Dimensions (mm) 650x125x96 1255x125x96
Weight 2.3kg 3.575kg


Downloads

Datasheet

IES File - 2ft

IES File - 4ft
