OPAL Tri-Colour Oyster Emergency Light

ebattens widebody
SKU:
O4020E / O4028E
View Stockists

OPAL

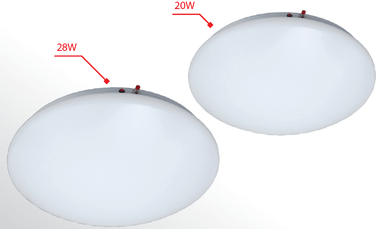

Tri-Colour Oyster Emergency Light

Features

  • Maintained
  • 3 hour discharge
  • 3 year warranty
  • Constant current driver
  • 1800mAh lithium battery technology
  • Built-in LED panel
  • Colour temp 5700k
  • Large 6mm terminal block for easy installation
  • Designed and manufactured to AS2293.3

Dimensions

opal emergency

Specifications

  20W 28W
Order Code O4020E O4028E
Model No LWOO4020E LWOO4028E
Input Voltage 240v 240v
Wattage

20w

28w

Lumen Output 2000lm 2500lm
Colour Temp 5700k 5700k
Beam Angle 120˚ 120˚
Diffuser Opal Opal
Testing System Manual Manual
Operating
Mode
Maintained Maintained
Battery Type Lithium 1800mAh
3 hour discharge
Lithium 1800mAh
3 hour discharge
AS2293
Classification
C0=D50 C90=D20 C0=D50 C90=D20
Applicable
Standard
AS/NZS2293.3 AS/NZS2293.3
Operating Temp 1˚C to 40˚C 1˚C to 40˚C

Dimensions
(mm)

350x105 400x120
Weight 1.5kg 1.8kg

Downloads

Datasheet

IES File - 20W

IES File - 28W
