OPTICUM
IP65 - IK10 LED Bulkhead Emergency Light
Features
- Surface mount 25w weatherproof emergency
- Polycarbonate diffuser
- Powder coated die-cast aluminium body
- IK10 vandal resistant for general circulation areas
- Ceiling and wall mount
- Non-dimmable
- Colour temp 4000k
- Classification D50

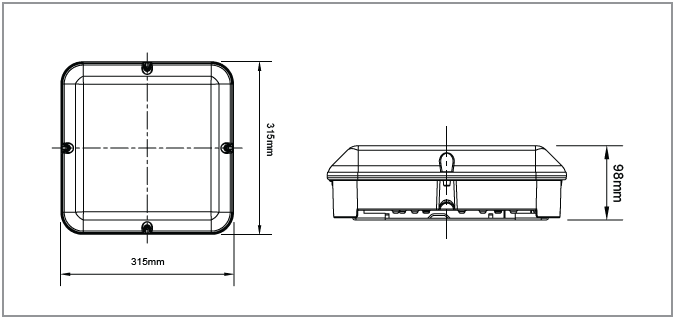

Dimensions
Specifications
| Emergency | Emergency with Sensor |
|
| Order Code | E013 | E013S |
| Model No | LW013E | LW013ES |
| Input Voltage | 240v | 240v |
| Wattage |
25w - 6w (Emergency) |
25w - 6w (Emergency) |
| Lumen Output | 3000lm | 3000ml |
| IP Rating | IP65 | IP65 |
| Beam Angle | 120˚ | 120˚ |
| Colour Temp | 4000k | 4000k |
| Operation Mode | Maintanined | Maintanined |
| Battery | Lithium 1800mAh | Lithium 1800mAh |
| AS2293 Classification |
C0=D63 C90=D25 | C0=D63 C90=D25 |
|
Construction |
Die-cast aluminium base with polycarbonate diffuser |
Die-cast aluminium base with polycarbonate diffuser |
|
Sensor Function |
No | Yes |
|
Terminal Block |
6mm | 6mm |
|
Dimensions (mm) |
315x315x98 | 315x315x98 |
| Weight | 3.5kg | 3.5kg |
Downloads
