BATTEN T8 LED Tube Wireguard Batten

widebody battens
SKU:
B210W / B218W
View Stockists

BATTEN

T8 LED Tube Wireguard Batten

Features

  • Battens feature quality components and superior finish to provide both good looks and reliability
  • The batten range is available in standard 240v and matching emergency battens
  • The batten range has been developed for applications such as basement car park, warehouses, fire stairs, commercial public spaces and industrial sites
  • Replaceable T8 LED tubes

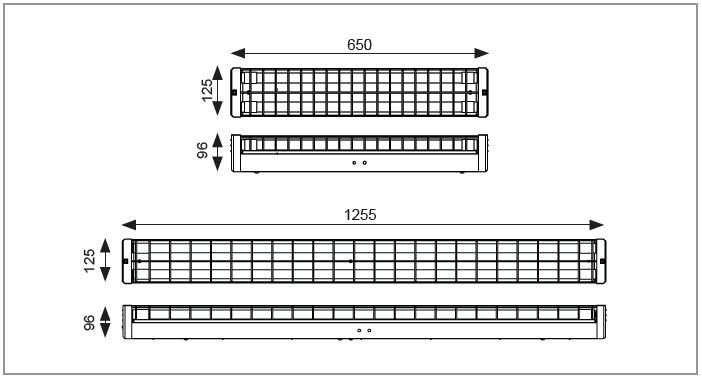

Dimensions

batten wireguard

Specifications

  2ft 4ft
Order Code B210W B218W
Model No LWB210W LWB218W
Input Voltage 240v 240v
Wattage

2 X 10W

2 X 18W

Lumen Output 2000lm 3600ml

Beam Angle

100˚ 100˚
Construction Powder coated steel body with
polycarbonate lamp holders
Powder coated steel body with
polycarbonate lamp holders
Lamps 2 x T8 LED
tubes 6000k
10w
2 x T8 LED
tubes 6000k
18w
Terminal
Block
12mm 12mm
Dimming
Options
No No
Dimensions
(mm)
650x125x96 1255x125x96
Weight 2.3kg 3.575kg

Downloads

Datasheet

IES File - 2ft

IES File - 4ft
