JUMBO
Jumbo 40m Exit Light
Features
- 40m viewing distance
- Comes with both single and double sided decals in running man “Pictograph”and the “EXIT” decal
- Large terminal block & cable entry
- Powder coated metal frame with polycarbonate diffuser
- Wall, ceiling single-sided & ceiling double-sided
- Maintained
- Manual test switch
- 3 year warranty
- 2200mAh lithium battery technology
- Designed and manufactured to AS/NZS2293.3

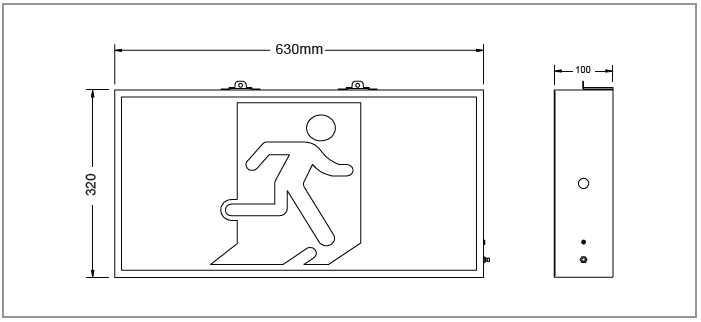

Dimensions
Specifications
| Order Code | E1801 |
| Model No | LWJBE1801 |
| Input Voltage | 240v |
| Construction |
Polycarbonate |
| Mounting | Ceiling and wall |
| Operation Mode | Maintanined |
| Testing System | Manual |
|
Battery |
Lithium 2200mAh 3 hour discharge |
| Classification | C0: D12.5 C90: D8 |
| Viewing Distance | 40m |
| Applicable Standard | AS/NZS2293.3 |
| Lamps | LED 50,000hrs |
| Operating Temp | 1˚C to 40˚C |
| Dimensions (mm) | 630x320x100 |
| Weight | 4.22kg |
