BATTEN Tri-Colour Slimline Batten with Sensor Socket

SKU:
B1803 / B1802
View Stockists

BATTEN

Tri-Colour Slimline Batten with Sensor Socket

Features

  • 20w/40w power selectable
  • Optional microwave sensor (MS01)
  • The batten range has been developed for applications such as basement car park, warehouses, fire stairs, commercial public spaces and industrial sites
  • Industry leading quick fix installation - batten features a safety chain allowing installer to mount the base while batten hangs free saving time travelling up and down ladder during installation
  • Fitted with large terminal block allowing fast installation and maintenance
  • Wide body to cover junction boxes and provides ample space for heat generating components

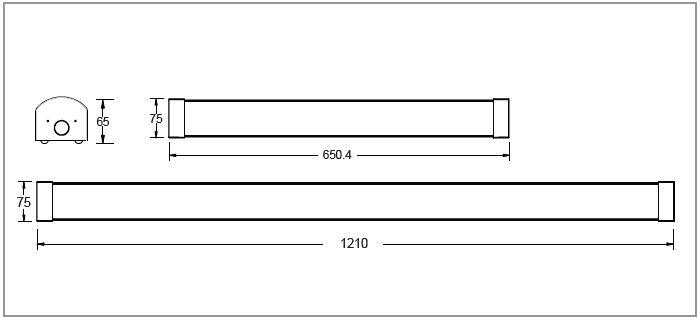

Dimensions

tri color slimline batten dimension

Specifications

  2ft 4ft
Order Code B1803 B1802
Model No TL8B1803 TL8B1802
Input Voltage 240v 240v
Wattage

20W

20W/40W

Lumen Output 2000lm 2000/4000lm

Beam Angle

100˚ 100˚
Colour Temp Tri-colour, 3000k, 4000k, 5700k Tri-colour, 3000k, 4000k, 5700k
Terminal
Block
10mm 10mm
Sensor
Options
Yes Yes
Dimensions
(mm)
650.4x75x65 1210x75x65
Weight 1.3kg 2.6kg

Downloads

Datasheet

IES File - 4ft - 20W - 3000K

IES File - 4ft - 20W - 4000K

IES File - 4ft - 20W - 5700K

IES File - 4ft - 40W - 3000K

IES File - 4ft - 40W - 4000K

IES File - 40W - 4ft - 5700K
