10W AVA Tri-Colour Downlight

downlights tricolour 2yr
SKU:
D10T
View Stockists

AVA

10W Tri-Colour Downlight

Features

  • Polycarbonate downlight with internal aluminium heat sink
  • High efficiency SMD chips
  • Constant current driver
  • Highly transparent opal polycarbonate diffuser
  • Trailing edge dimming option
  • 1.2m flex and plug included
  • Tri-colour 3000k/4000k/5700k - switchable
  • IC-4 rating - can be installed under ceiling insulation
  • Internal/external IP44 rating

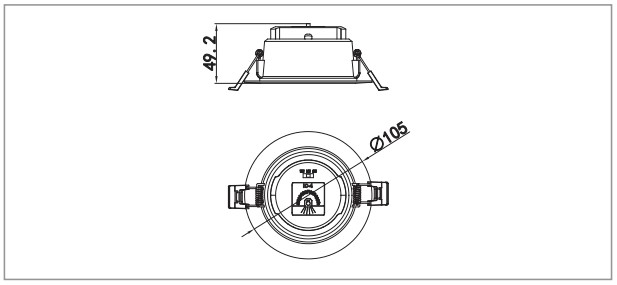

Dimensions

ava 10w

Specifications

Order Code

D10T

Model No

TLAVTC10W

Input Voltage 240v
Wattage

10W

Lumen Output 800lm
IP Rating IP44

Beam Angle

100˚
Driver Integral driver
Cutout 90mm
Fitting Colour White
Colour Temp Tri-colour
3000k/4000k/5700k
Dimming Options Yes - trailing edge
Flex and Plug Yes
Body Type Polycarbonate with
aluminium heat sink
Gimble/Fixed Fixed
Weight 0.33kg

Downloads

Datasheet

IES File - 3000K

IES File - 4000K

IES File - 5000K
