BATTEN
T8 LED Tube Weatherproof Batten
Features
- Battens feature quality components and superior finish to provide both good looks and reliability
- The batten range has been developed for applications such as basement car park, warehouses, fire stairs, commercial public spaces and industrial sites
- Fitted with large terminal block allowing fast installation and maintenance
- Wide body to cover junction boxes and provides ample space for heat generating components
- Replaceable T8 LED tubes
- Polycarbonate base and tamper proof stainless steel clips

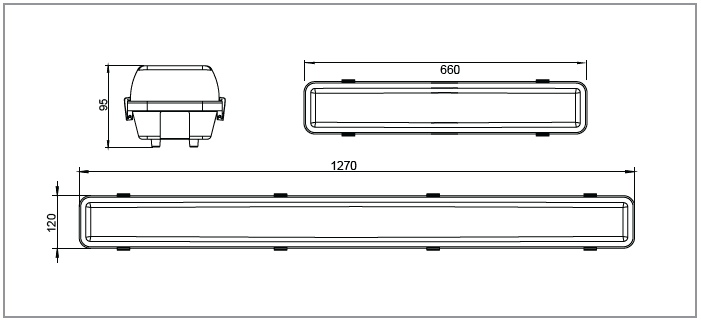

Dimensions
Specifications
| 2ft | 4ft | |
| Order Code | B210WP | B218WP |
| Model No | LWWB210 | LWWB218 |
| Input Voltage | 240v | 240v |
| Wattage |
2 X 10W |
2 X 18W |
| Lumen Output | 2000lm | 3600ml |
|
Beam Angle |
100˚ | 100˚ |
| Construction | Polycarbonate body and diffuser. Stainless Steel clips and screws. |
Polycarbonate body and diffuser. Stainless Steel clips and screws. |
| Lamps | 2 x T8 LED tubes 6000k 10w |
2 x T8 LED tubes 6000k 18w |
| Terminal Block |
12mm | 12mm |
| Dimming Options |
No | No |
| Dimensions (mm) |
660x120x95 | 1270x120x65 |
| Weight | 1.9kg | 3.8kg |
