Batten T8 LED Tube Prismatic Batten

SKU:
B210P / B218P
View Stockists

BATTEN

T8 LED Tube Prismatic Batten

Features

  • Battens feature quality components and superior finish to provide both good looks and reliability
  • The batten range is available in standard 240v and matching emergency battens
  • The batten range has been developed for applications such as basement car parks, warehouses, fire stairs, commercial public spaces and industrial sites
  • Replaceable T8 LED tubes

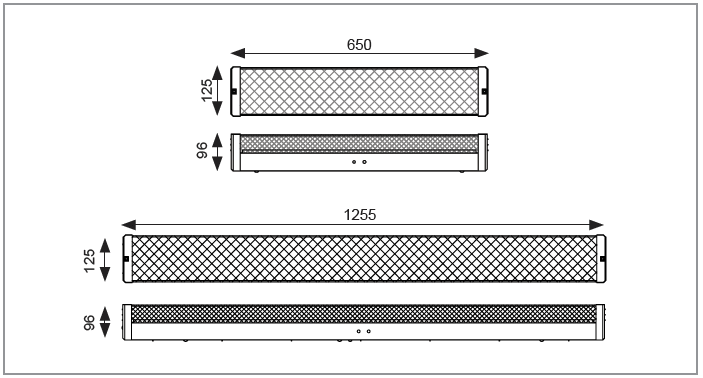

Dimensions

2ft batten

Specifications

  2ft 4ft
Order Code B210P B218P
Model No LWB210P LWB218P
Input Voltage 240v 240v
Wattage

2 X 10W

2 X 18W

Lumen Output 2000lm 3600lm
IP Rating IP20 IP20

Beam Angle

100˚ 100˚
Construction Powder coated steel body with
polycarbonate lamp holders
Powder coated steel body with
polycarbonate lamp holders
Lamps 2 x T8 LED
tubes 6000k
10w
2 x T8 LED
tubes 6000k
18w
Terminal
Block
12mm 12mm
Dimming
Options
No No
Dimensions
(mm)
650x125x96 1255x125x96
Weight 2.3kg 3.575kg

Downloads

Datasheet

IES File - 2ft

IES File - 4ft
