Spike
Slimline Weatherproof Batten
Features
- Easy Install - A module fitting with a quick connect terminal block allows for fast installation and maintenance
- Lamps Included - LED, 30,000hr life, LED CCT Panel included
- Tri colour 3000k / 4000k / 5700k - Switchable
- 50,000hr LED CCT Panel
- IP65 Weatherproof
- IK10 Vandal proof
- Dali option available as special order

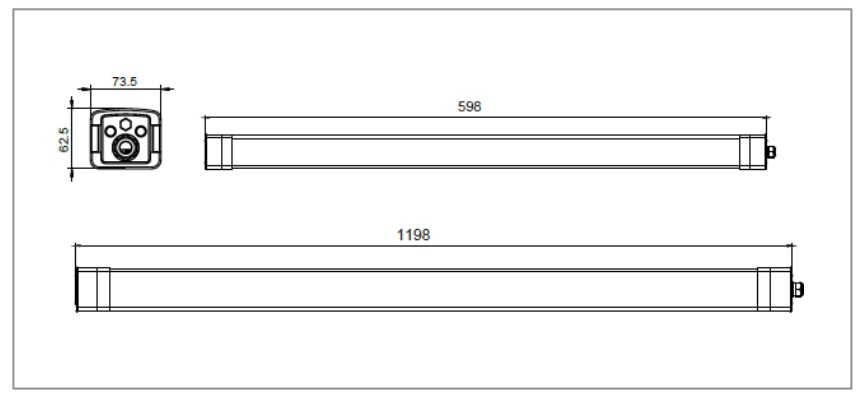

Dimensions
Specifications
| 2ft | 4ft | |
| Order Code | B2403 | B2402 |
| Model No | LWSPB2403 | LWSPB2402 |
| Input Voltage | 240v | 240v |
| Wattage |
20W |
40W |
| Lumen Output | 1800 - 2000lm | 3600 - 4000lm |
|
Beam Angle |
100˚ | 100˚ |
| Colour Temp | Tri-colour, 3000k, 4000k, 5700k | Tri-colour, 3000k, 4000k, 5700k |
| Terminal Block |
Quick connect | Quick connect |
| Dimming Options |
Yes | Yes |
| Sensor options | Yes | Yes |
| Dimensions (mm) |
598x73.5x62.5 | 1198x73.5x62.5 |
| Weight | 1.3kg | 2.6kg |
