Bredon
LED Strip Batten - Wireguard
Features
- 20w/40w power selectable (4 foot only)
- Fitted with a large terminal block allowing for fast installation and maintenance
- Wide body to cover junction boxes and provides ample space for heat generating components
- Tri-colour 3000k/4000k/5700k – switchable
- Optional microwave sensor (MS02)
- Dali option available as special order

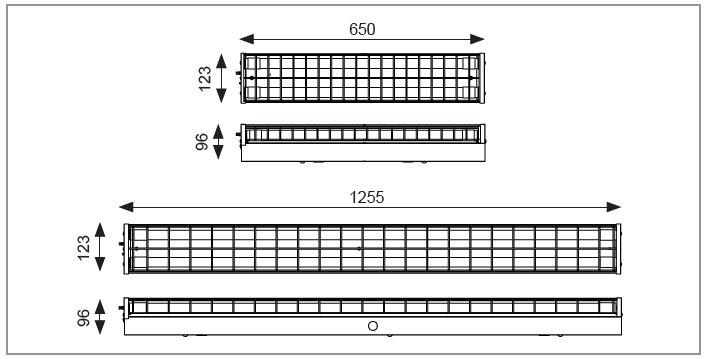

Dimensions
Specifications
| 2ft | 4ft | |
| Order Code | B2112W | B2110W |
| Model No | LWBR2112W | LWBR2110W |
| Input Voltage | 240v | 240v |
| Wattage |
20W |
20W/40W |
| Lumen Output | 1000/2000lm | 2000/4000lm |
| IP Rating | IP20 | IP20 |
| Colour Temp | Tri-colour (3000k, 4000k, 5700k) | Tri-colour (3000k, 4000k, 5700k) |
| CRI | >80 | >80 |
| Operation Mode | Sustained | Sustained |
| Charging Method |
Intelligent current limited constant voltage charge |
Intelligent current limited constant voltage charge |
| Construction | Powder coated steel | Powder coated steel |
| Terminal Block | 12mm | 12mm |
| Dimming Options | No | No |
| Dimensions (mm) | 650 x 123 x 96 | 1255 x 123 x 96 |
| Weight | 2.1kg | 4kg |
Downloads
IES File 40W-3000K
IES File 40W-4000K
IES File 40W-5700K
